20‘’Flying-wing container
The Winged Container is a type of container that can be opened from both sides. It mainly uses hydraulic power, with the lifting height forming a 90-degree angle with the container body. It has strong loading adaptability and is suitable for large-sized goods. It has a fast loading and unloading speed, reducing loading and unloading costs. The Winged Container is widely used. With the continuous increase in labor intensity, the Winged Container begins to play an important role, which can reduce the cost of human, material and financial resources and achieve better work results.

Product Details

Specification
1. External dimension6058 x 2438 x 2591/2896 mm (20’GP/HC, LxWxH)
2. Internal dimension5898 x 2285 x 2385/2690 mm (20’GP/HC, One side wing open, LxWxH)
5898 x 2218 x 2385/2690 mm (20’GP/HC, Both sides wing open, LxWxH)
3. End door opening2070 x 2280/2585 mm (20’GP/HC, WxH)
4. Side wing opening5592 x 2280/2585 mm (20’GP/HC, WxH)
5. Inside capacity33.2 CBM
6. Tare weight2200 kg
7. Payload21800 kg
8. Max gross24000 kg
9. CertificateCSC

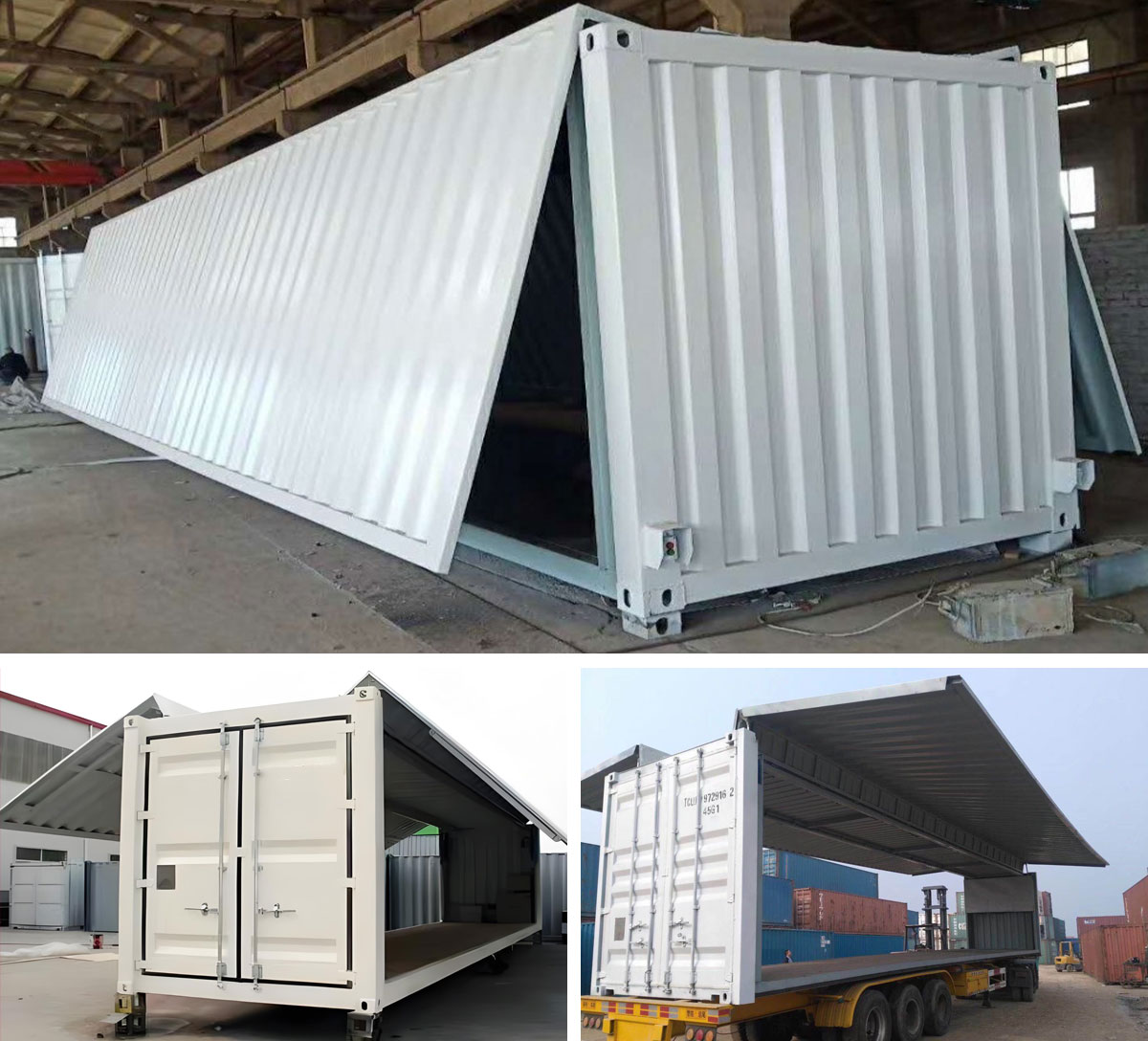

开2

Product Application

20' Container
